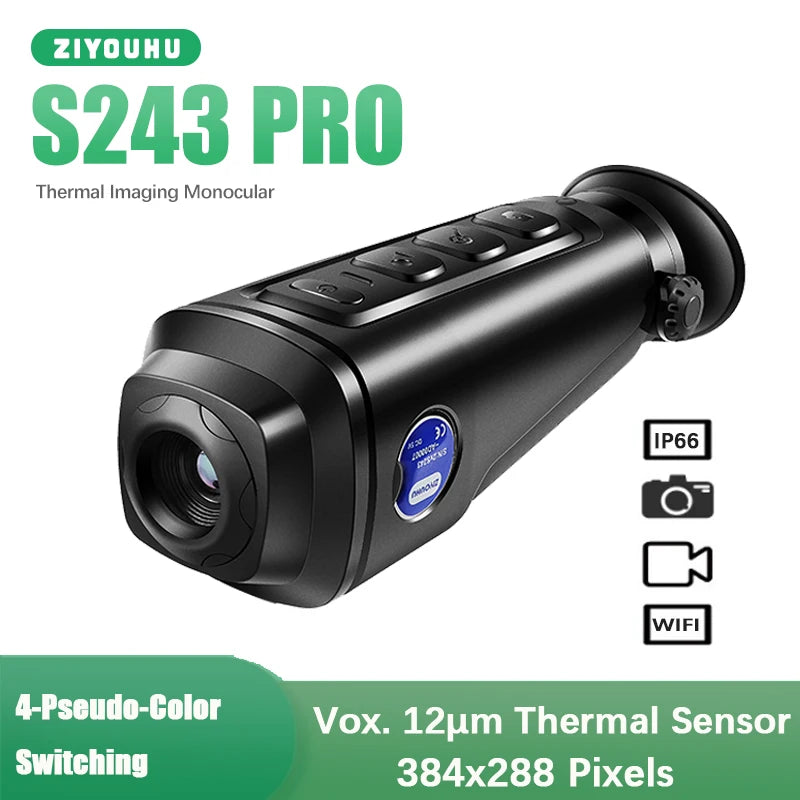

New Upgrade S243pro Thermal Imaging Monocular Laser Red Dot Crosshair Cursor Aiming Hunting Observation Infrared Thermal Imager
New Upgrade S243pro Thermal Imaging Monocular Laser Red Dot Crosshair Cursor Aiming Hunting Observation Infrared Thermal Imager
Couldn't load pickup availability
Feature:
Amount of standby time exceeding 10 hours! Small size, one-handed operation (moving observation), easy to carry.
Support WIFI image transmission, and real-time mobile APP browsing, recording, photographing, and playback;

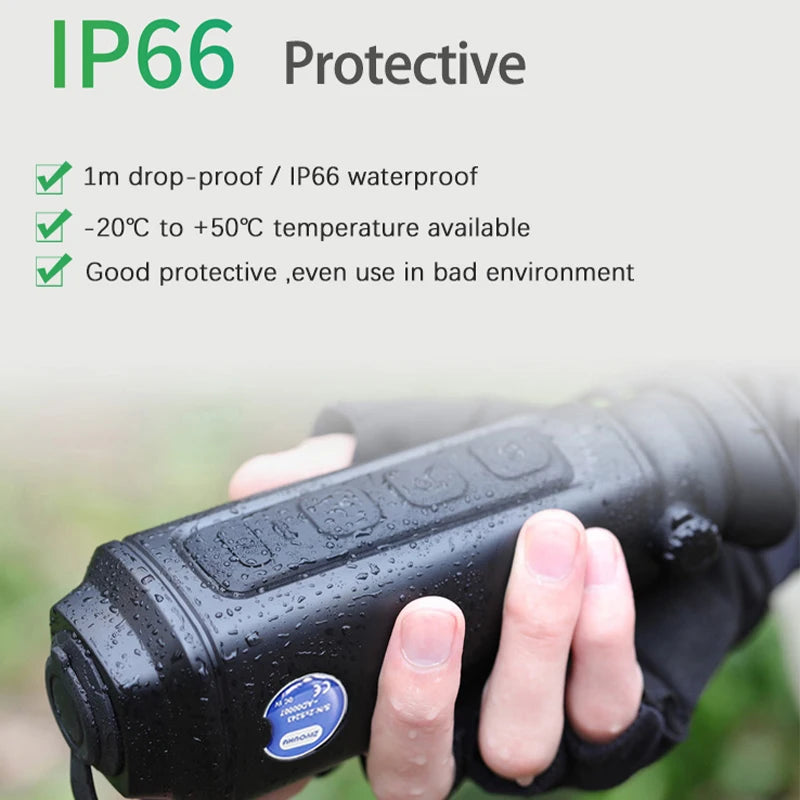

Support photographing and video, Protection level IP66, 1-meter drop resistance;
Built-in multiple infrared color codes and cross cursor and laser red dot indicator for target aim;
Picture in Picture function for details viewing without missing large field of view

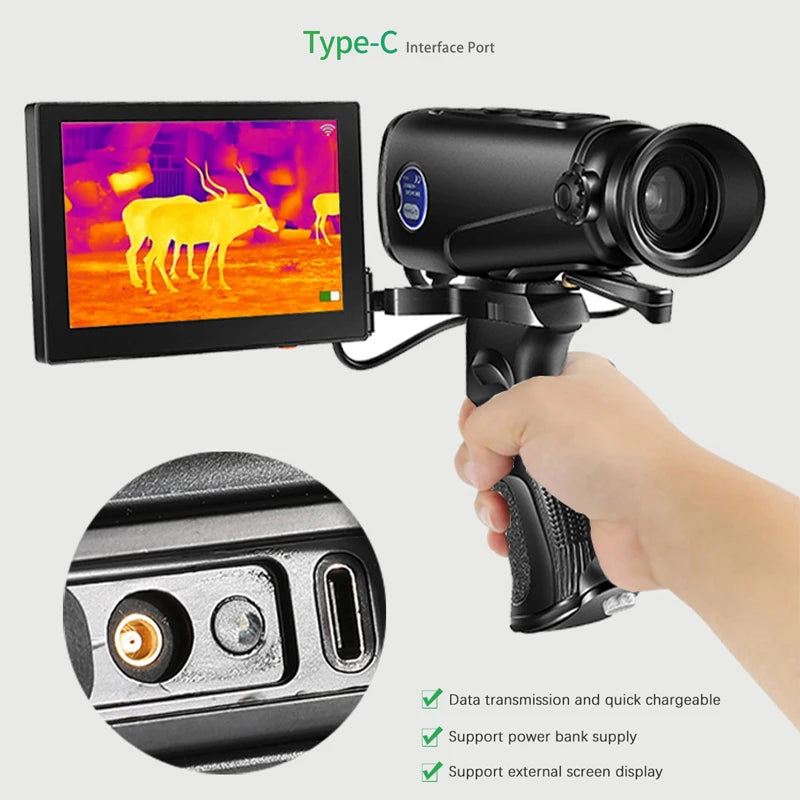

Type-C fast charging and external handheld screen real time video output
Hotspot Tracking let searching more easy
| Item | S243 PRO |
| Detector | |
| Type | VOx /12μm |
| Resolution | 384×288 |
| NETD | ≤ 35mk |
| Image | |
| FOV | 17.6°x13.2°（±5%） |
| Focal length | 15mm |
| Frame rate | 50HZ |
| Focus | Fixed lens |

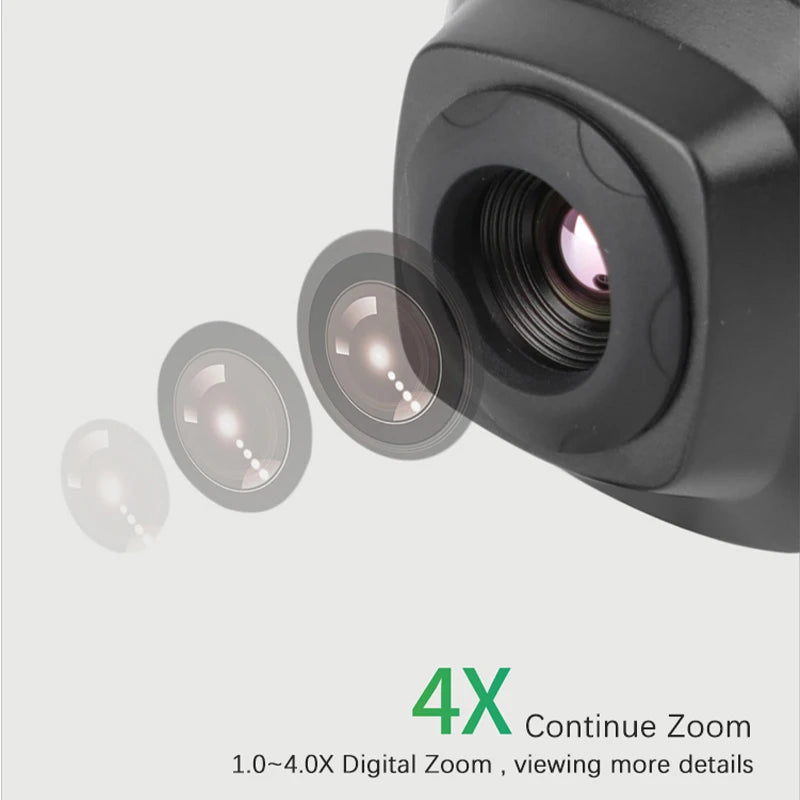

| Digital zoom | 1.0~4.0X |
| Spectral range | 8~14μm |
| Image transmission | With wifi real-time image transmission |
| Crosshair cursor | yes |
| Recording | Photo and video |
| Storage | Build-in，32GB |
| Hot-spot tracking | yes |
| Laser indicator | yes |
| Display | |
| Display | Color screen 800 x 600 |
| Palette | Black hot, white hot, red hot and Pseudo-color |
| Diopter adjustment | Adjust by knob |
| Power | |
| Battery | Li-ion rechargeable |
| Working time | 10 hours continuous |
| Charging | Support USB charging and power bank |
| External power | DC5V/2A（type-c） |
| Environment | |
| Operating temp. | -20℃~ +50℃ |
| Storage temp. | -40℃~ +60℃ |
| Protection class | IP66 |
| Drop resistance | 1 M |
| Physical | |
| Weight | <330g |
| Dimension | <185*60*60mm |
| Interface | |
| Power interface | Type-C for external charging |
| Video output | PAL |
| Detection distance | |
| Human（1.8×0.5）m | 1000m |
| Car（2.3×2.3）m | 1400m |
| Recognition distance | |
| Human（1.8×0.5）m | 350m |
| Car（2.3×2.3）m | 500m |
About this item
- Easy to Use-S243prothermal imager has only four buttons and an intuitive interface, super easy for one-handed operation, even can be installed on the mount to free your hands
- Thermal Scope-1400Mdetection range and 384×288 thermal resolution, 4x digital zoom and 4 different thermal color palette options improve identification
- Thermal Imaging Camera-800X600 OLEDresolution display. The infrared camera is equipped with a Wi-Fi hotspot and 32GB card, provides you a live video feed, video recording and snapshot capturing
- Rechargeable-Built-in a lithium-ion battery, supports10 hours of work. And the thermal goggle can be charged via an adapter or power bank through USB-C

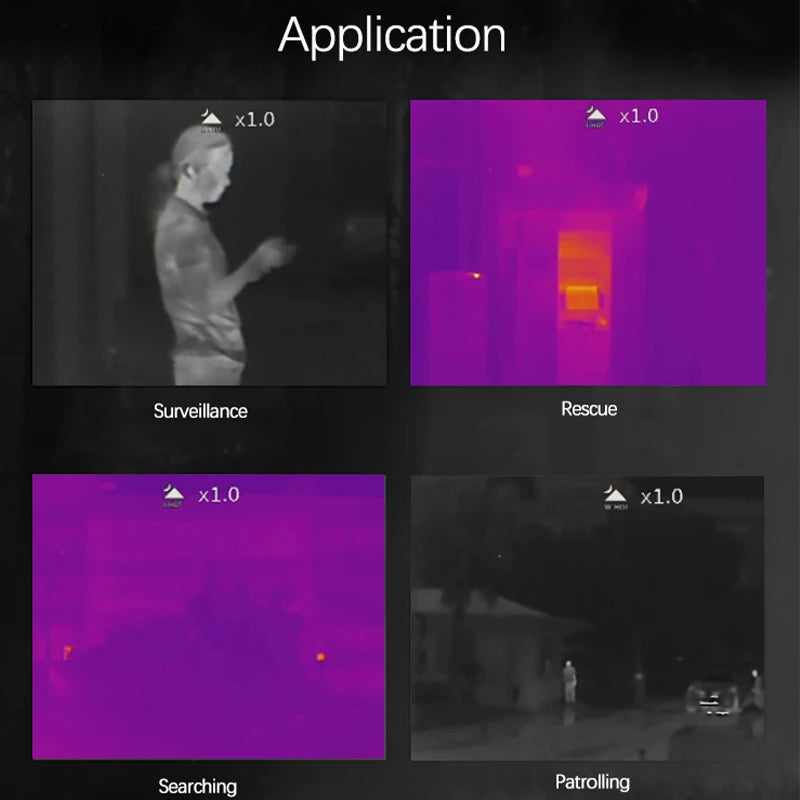

- Reliable Vision-The handheld thermal monocular shows people and animals through infrared ray in 100% dark or glaring light. Perfect for outdoor, exploration, surveillance, rescue, security, hunting, hiking,etc.
S243PRO SPECIFICATIONS
Resolution:384×288
Display:800X600 OLED （Eyepiece diopter adjustable）
Refresh Rate:50Hz
FOV(H×V):17.6°*13.2°（±5%）
Detection Range:1400m(Vehicle),1000m(Human)
Recognazition Range : 480m(Vehicle) , 345m(Human)
Lens(Focal Length):15mm
Response Waveband:8~14um
NETD:≤35mk@25℃
Digital Zoom:1X-4X
Battery Life:10-hour,Rechargeable
External Power:DC 5V/2A(Type-C USB)
Thermal Palette:Black hot,White hot,Red hot,Fusion
Hot Spot Tracking:Yes
Adjustable Diopter:Yes
Cross Hair:Yes
Wi-FI Hotspot:Yes
Operation Temp:-20℃~+50℃
IP Level:IP66
Weight:≤330g
Size:<7.3×2.4×2.4 inches≤185*60*60mm
In The Box:Handheld Thermal Camera,Type-C USB Cable,Video Data Cable,Lanyard
