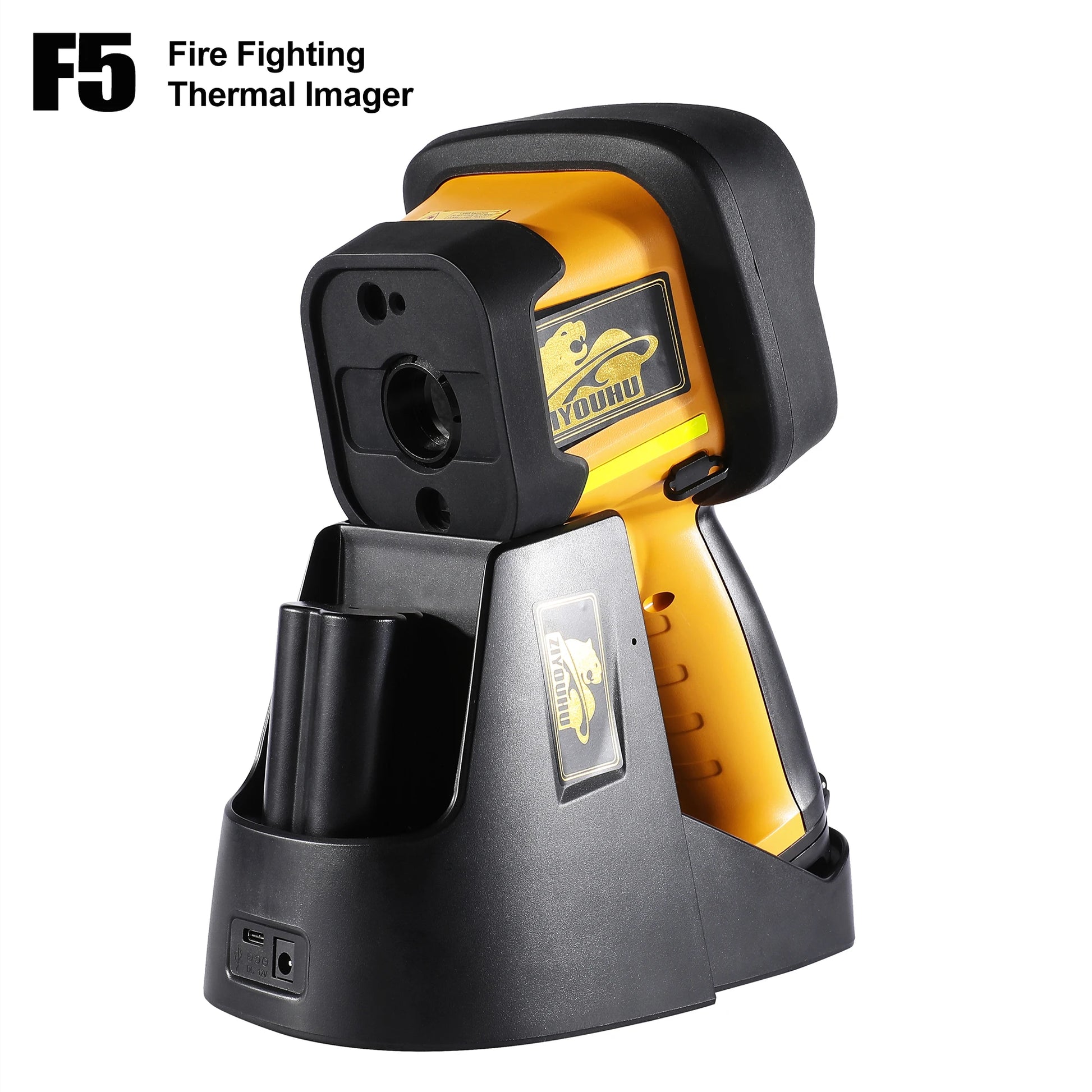

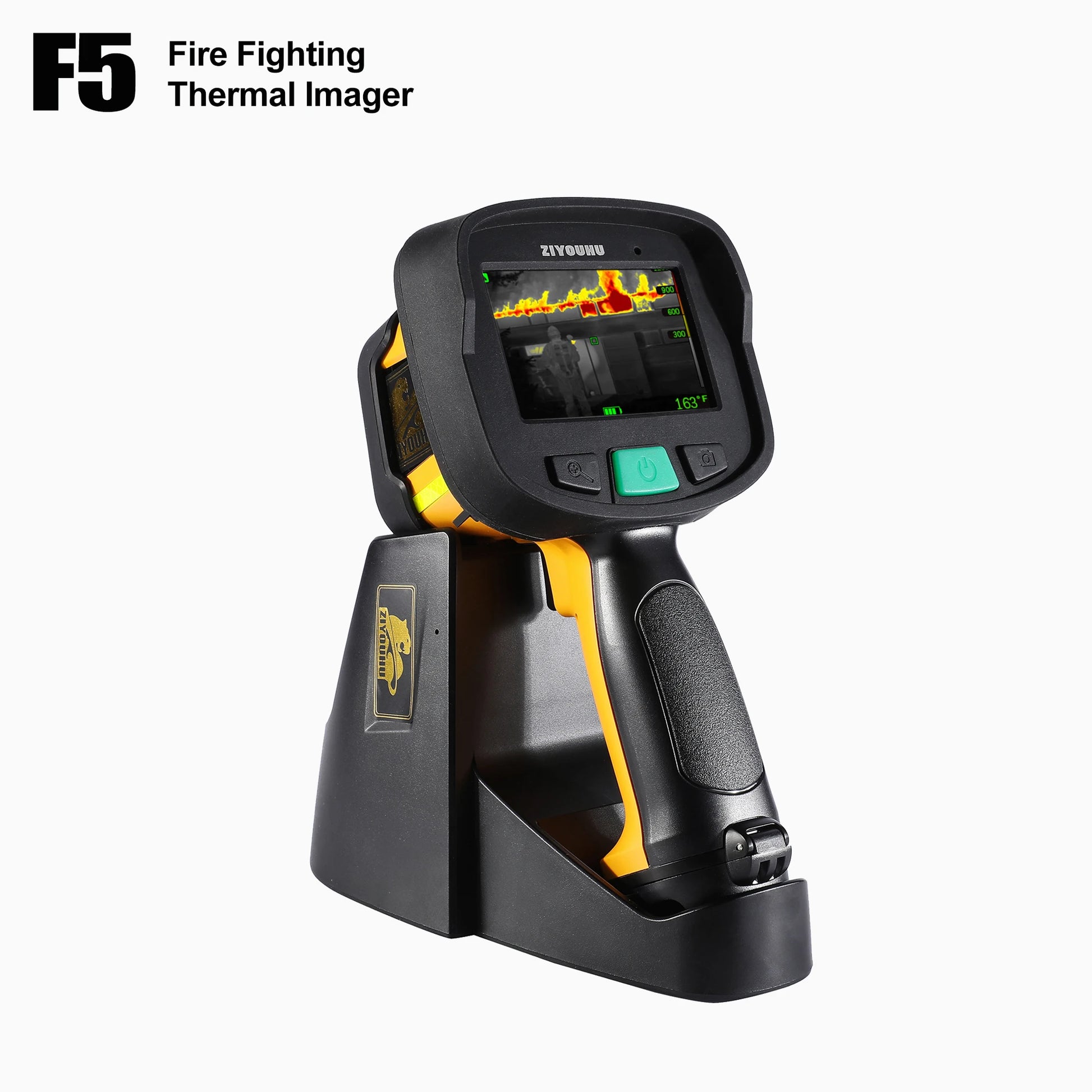

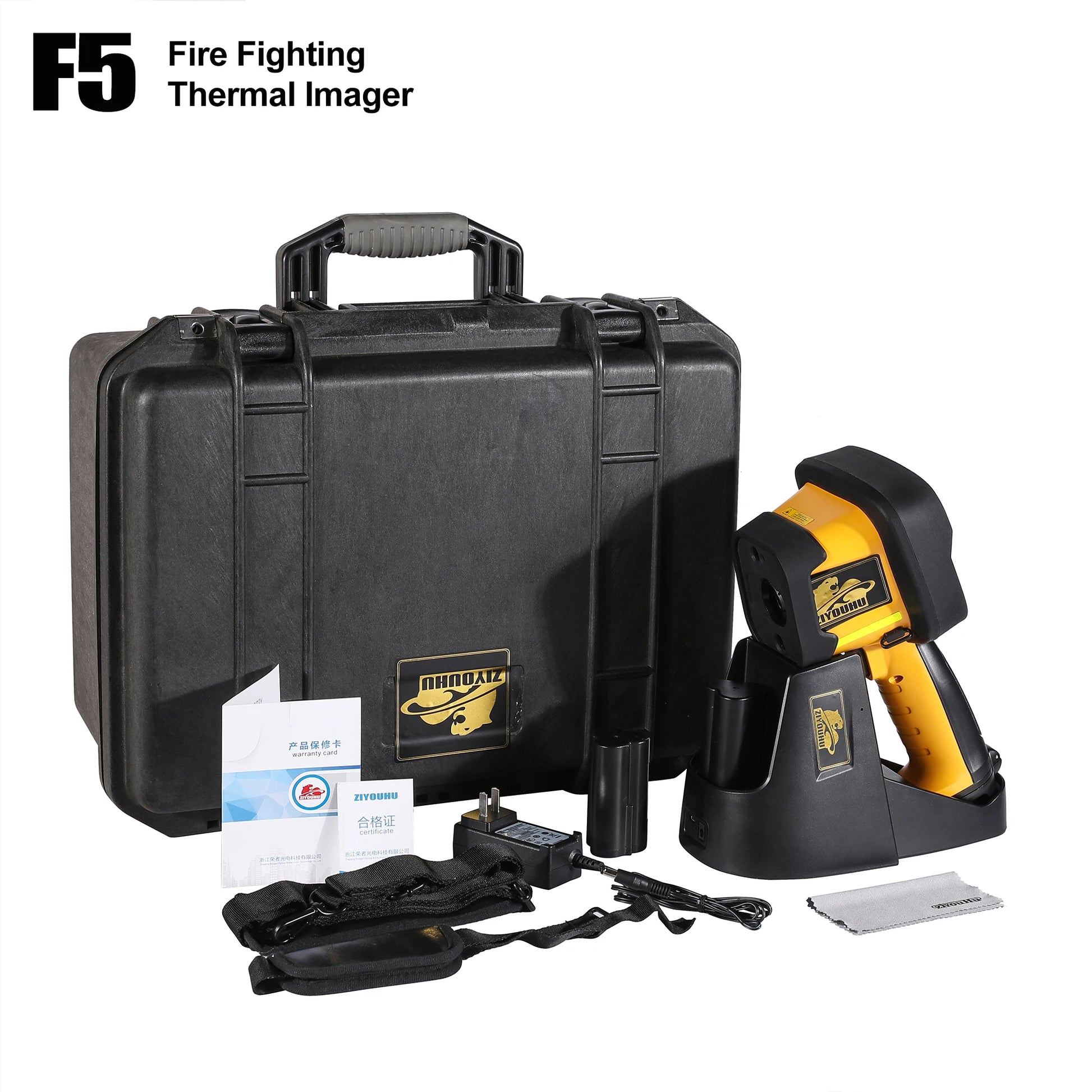

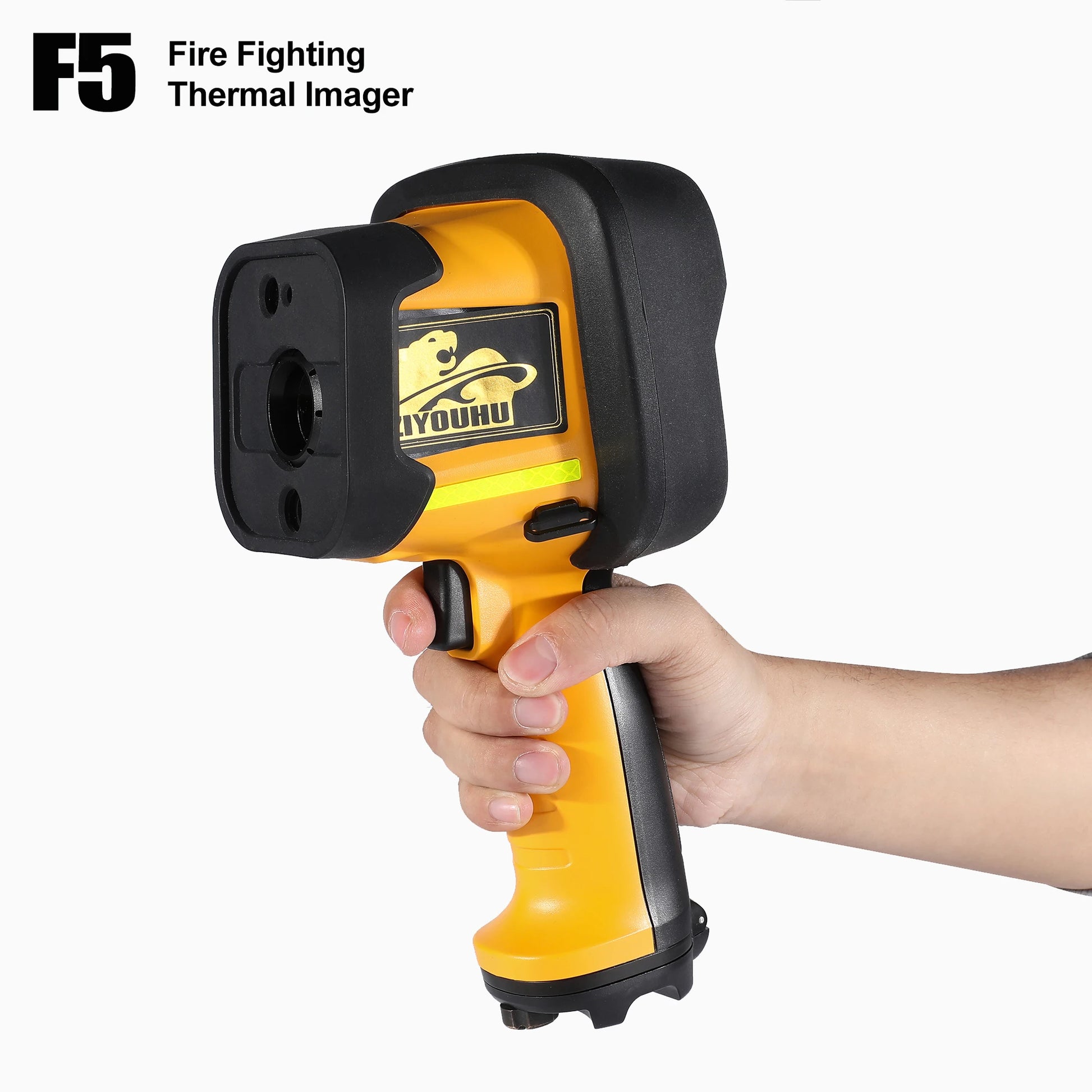

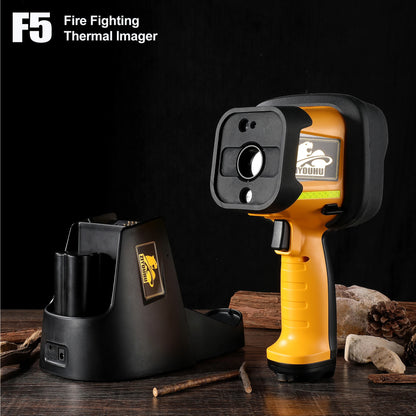

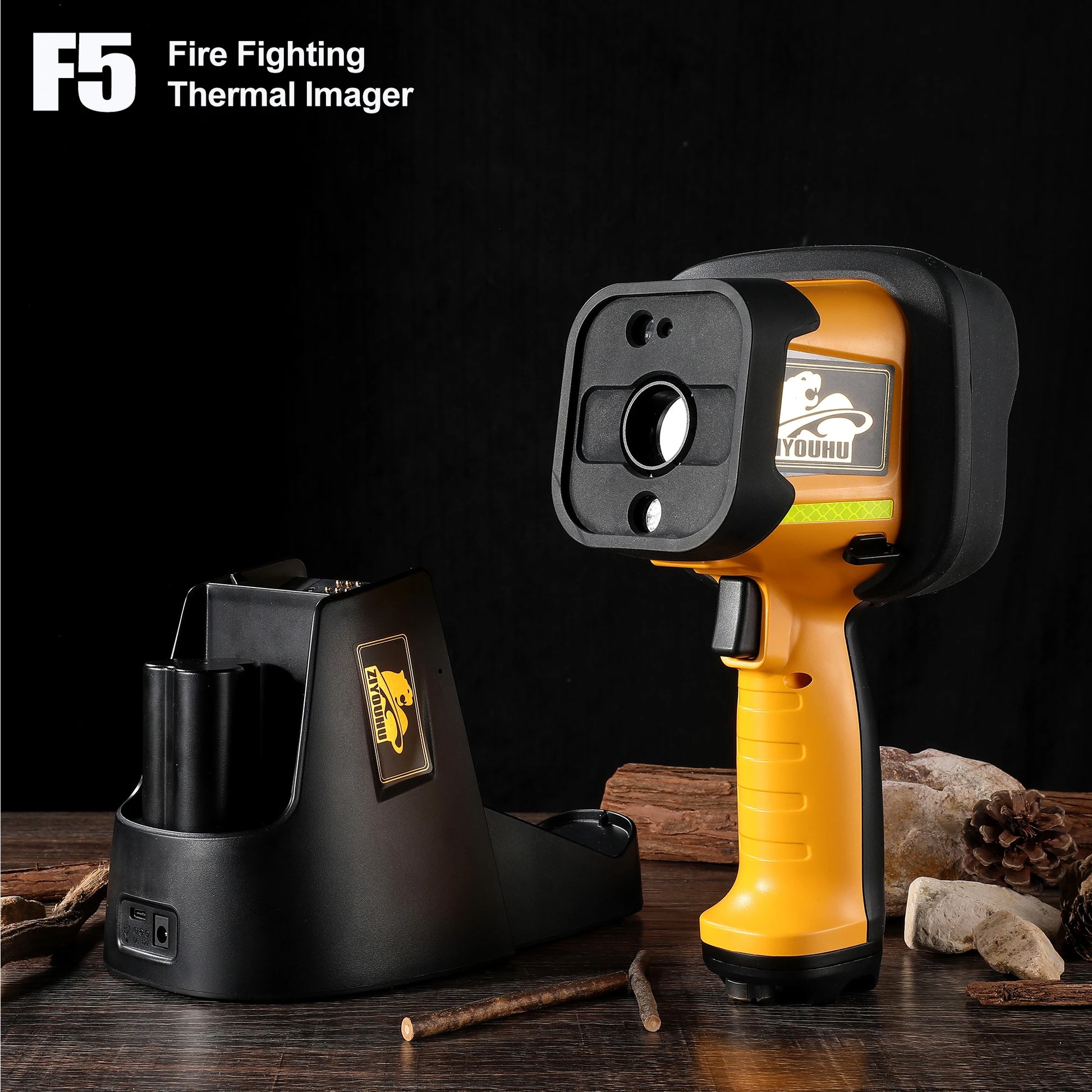

F5 Fire Fighting Thermal Imager Camera for Firefighter 384×288 Wide Angle Temperature Measurement Live Image & Video Recording
F5 Fire Fighting Thermal Imager Camera for Firefighter 384×288 Wide Angle Temperature Measurement Live Image & Video Recording
Couldn't load pickup availability
Feasures:
-Full compliance with GA/T635-2006 standards
-384×288 high pixel detector, clearness and high sensitivity
-Wide angle lens, Meet the requirement of fire scene search and rescue. 4.3″LCD,much clearerscreen
-Simple operation for firefighter,3 enlarged size buttons and shortcutkeys suitable for use on field offire
-3 kinds of modes optional.suitable for different situation applications.DSIETMdual-band image enhancement,show more detail
-Built in large capacity memory,support live pictures and videos recording. Wider range oftemperature measurement,auto shift gears

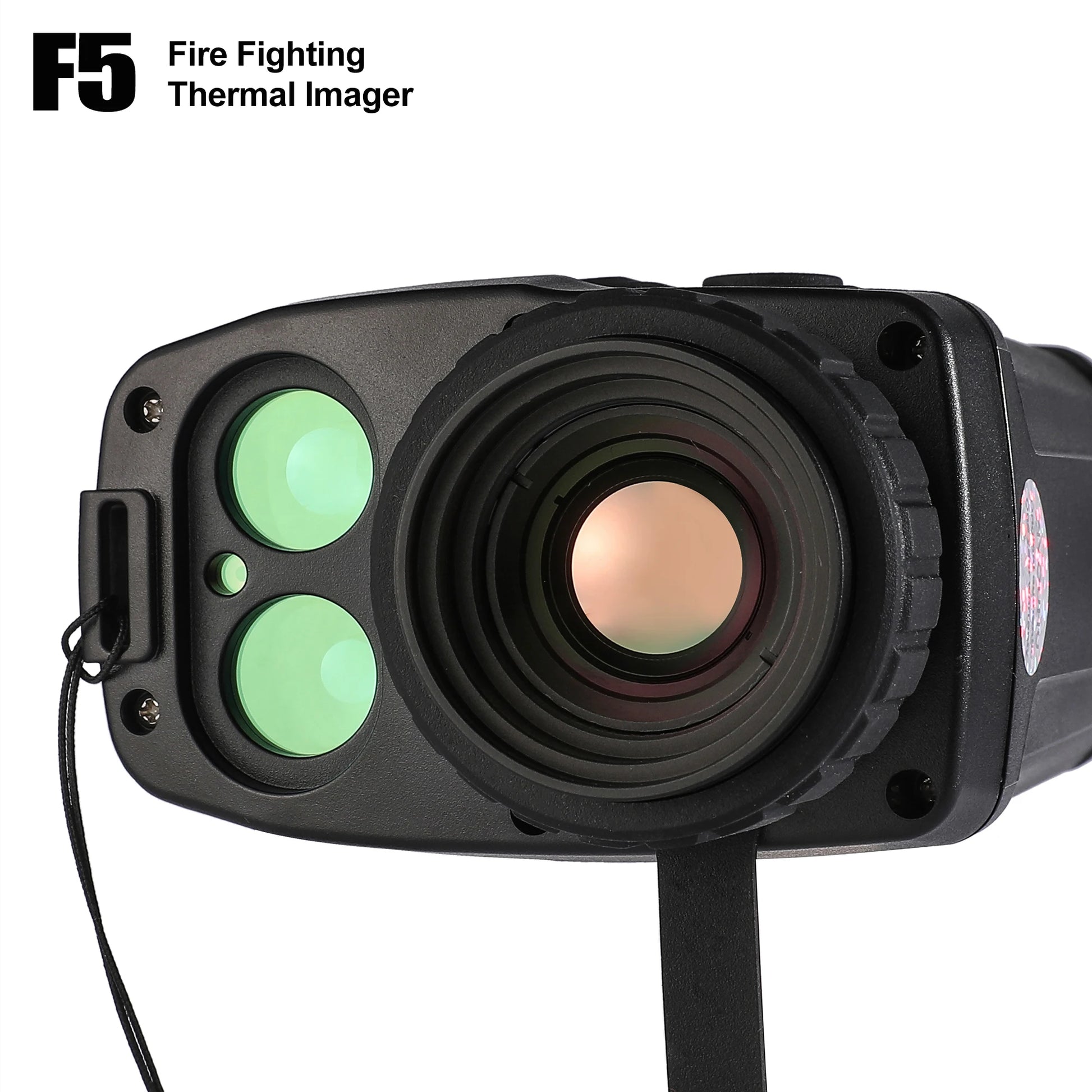

-Provide intelligentcharging set,fast charging technology,can connect to PC. Compass, laser rangefinder and WiFi
-1m Drop resistance,lP67,reliably under high temp environment- Covering reflective fluorescent strips design for identificationin dark environment
|
Item |
Technical Specifications |
|
|
Optical Data Detector (Sensor) |
Type |
Uncooled focal plane micro-heat type |
|
Resolution Ratio |
384*288 |
|
|
Pixel Size |
8um |
|
|
Spectral Response |
8~14um |
|
|
Thermal Sensitivity (NETD) |
≤60mK |
|
|
Frame Frequency (Refresh Rate) |
50/60HZ |
|
|
Optical Data Lens |
Angle of View Field |
49.2°*36.3° |
|
Focusing Range |
0.5m -∞ |
|
|
Optical Data Display |
Display |
4.3” TFT color LCD display, resolution 800*480 |
|
Color Mark Mode |
Black hot, white hot, fire protection, iron red, firefighting, search & rescue |
|
|
Image Adjustment |
Automatic |
|
|
Image Performance |
Spatial Resolution |
2.58mrad |
|
Image Processing |
The dual-band image fusion technology |
|
|
Digital Zooming |
2x, 4x |
|
|
Image Storage |
Memory |
Built-in 32G memory |
|
Video Shooting |
Yes, the format of “AVI” is available |
|
|
Image Storage |
Yes, the format of “JPEG” is available |
|
|
Measurement |
Temperature Measurement Range |
From -20°C to +1200°C, automatic shift |
|
Temperature Measurement Accuracy |
±10°C or ±10% of the measured value, which is greater |
|
|
Temperature Measurement Modes |
The central point, the highest temperature point, the lowest temperature point |
|
|
Temperature Measurement Correction |
Automatic/Manual Zero Setting |
|
|
Power Supply System |
Battery Type |
Rechargeable lithium battery |
|
Working Time of Battery |
More than 4 hours |
|
|
Battery Charging Time |
The battery can be fully charged within 3 hours |
|
|
Power Supply Management |
Automatic power-off/automatic sleep |
|
|
Physical Properties |
Overall Dimension |
W145*D125*H270mm |
|
Total Weight |
≤1.3Kg (battery included) |
|
|
Logo on Housing |
Fluorescent reflective strip |
|
|
Other Configuration |
Compass |
Yes |
|
Laser Ranging |
Yes |
|
|
WiFi |
The built-in WiFi module can transmit wireless video |
|
|
Data Interface |
USB type C for image/video transmission |
|
|
Environmental Parameters |
Operating Temperature (Thermal Conditions) |
-10°C to +50°C. The device can keep running for 30 minutes at 80 °C. The device can keep running for 10 minutes at +120°C or for 5 minutes at +260°C. |
|
Storage Temperature |
From -30°C to +60°C |
|
|
Humidity & Temperature |
The device can keep running for 2 hours at 40°C and 85% RH |
|
|
Level of Protection |
IP67 |
|
|
Vibration |
2.5g, IEC60068-2-6 |
|
|
Impact |
25g, IEC60068-2-29 |
|
|
Falling |
2m |
|
|
Safety Requirements |
Performance |
This device conforms to GA/T 635—2006 Thermal Infrared Imager for Fire Protection |
|
Safety |
GB4943.1-2011 |
|
|
EMC |
This device is CE certified |
|
|
RoHS |
Compliance |
|
|
Laser |
IEC60825-1-2014 |
|
